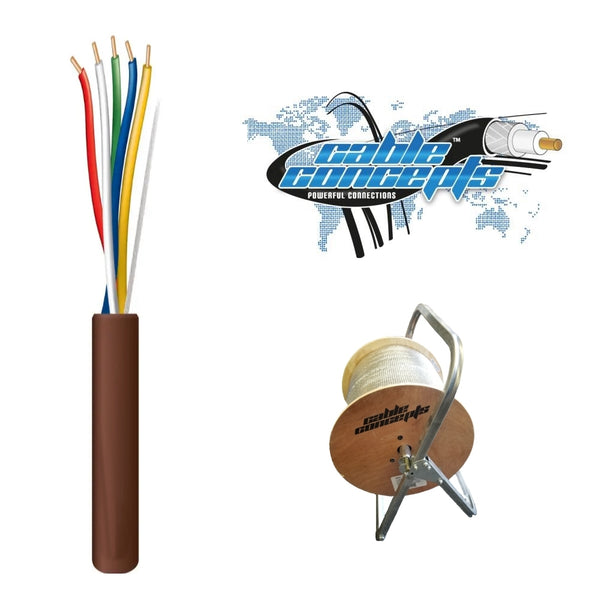

Cable Concepts Low Voltage Cable, 18 AWG, 5 Conductor, FT4/CSA Approved, 1000 Ft, Red

WICH0500RD

Regular price

Please contact us if you are interested in this product.

Cable Concepts Low Voltage Cable, 18 AWG, 5 Conductor, FT4/CSA Approved, 1000 Ft, Red

Application:



Thermostat cables are used for power limited circuits such as thermostat control, heating & air-conditioning, touch-plate systems, burglar alarms, intercom systems, door bells, remote control units and signal systems.

Conductors:



Thermostat cables have solid soft drawn bare conductors, per ASTM B-3.

Insulation:



Thermostat cables has heat and moisture resistant poly-vinyl chloride PVC insulation.

Jacket:



Thermostat cables have a heat and moisture resistant poly-vinyl chloride PVC jacket.

Standards:



Thermostat cables meets or exceeds the following standards C(UL), CMG, FT4, CSA Approvals.

Size: 18 AWG
Conductors: 5
Insulation Thickness: 0.008"
Jacket Thickness: 0.015"
Outside Diameter: 0.193"
Weight: 118 Lbs
