Cable Concepts Plenum Cat5e, FT6, CUL, UTP, CMP, 1000 Ft. Blue

WICH6105BL

Regular price

Please contact us if you are interested in this product.

Cable Concepts CAT5e Plenum, FT6, UTP, ETL, C(ETL) CMP Ethernet Cable 350MHz, 4 Pr, 24AWG, 1000 Ft, Blue
  • 100% PURE COPPER CONDUCTORS: Pure copper conductors relay a stronger signal that can survive long lengths without distortion. Pure copper is very flexible and malleable when compared to other conductors which means that you can use pure copper conductor cables in complex installation patterns without having to worry about the cable's conductors breaking inside the cable during installation or over the years.
  • COMPATIBLE WITH INDOOR USE: Fire retardant, UV and sunlight resistant plenum rated jackets are designed to meet rigorous fire safety test standards and are recommended to be used in plenum spaces which are usually above suspended/drop ceilings or below raised floors.
  • TANGLE-FREE & HASSLE-FREE EASY PULL BOX: Perfect for smooth, flexible and super easy installation. The whole 1000 feet (305 meters) of cable has running "ft" count which makes measuring the cable really easy.

Solid Conductors
We use Copper conductor that are made of single piece of metal. It is tougher than a stranded conductor, but rigid and less flexible than a stranded conductor.

Spline
The term spline comes from the flexible. The spline is being used to reduce cross-talk and interference between the copper conductors. Another benefit of Cat5e is that it supports much faster data throughout.

Ripcord
Ripcord is used to cut thru the jacket/casing of the wire which is called plenum jacket so you don't have to use a knife.

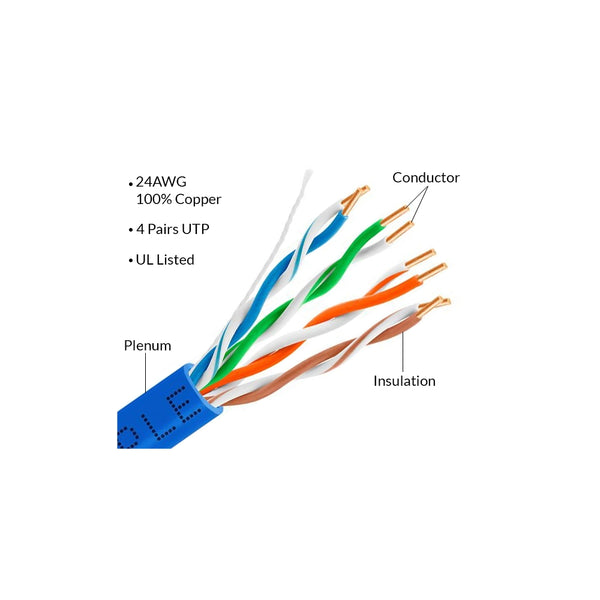

    CONSTRUCTION
    CENTER CONDUCTOR:
    Material: Solid Bare Copper
    Size: 24AWG 0.0193''(0.49±0.005mm)
    INSULATION:
    Material: SAMP® FEP
    OD: 0.034''(0.87±0.05mm)
    Color code of four pairs:
    1.Brown * White/Brown
    2.Blue * White/Blue
    3.Orange * White/Orange
    4.Green * White/Green
    SEPARATOR:

    SAMP® LSZH CROSSWEB
    RIPCORD:
    Kevlar
    JACKET:
    Material: Plenum PVC
    Wall Thickness: 0.0157''(0.40mm)
    OD: 0.197''±0.008''(5.0±0.2mm)
     MARKINGS:
    CABLE CONCEPTS WICH6105BL 4PR 23AWG SOLID CAT5e PLENUM 350MHZ UTP 5011596 (ETL) C(ETL) --ETL VERIFIED TO ANSI/TIA 568C.2 RoHS COMPLIANT FT6 *****FT
    ELECTRICAL PROPERTIES
    Temperature Rating: 80℃
    Voltage: 30V
    Capacitance: 5.6nF/100m .Nom
    Characteristic Impedance: 100±15%
    Velocity of propagation: 66%
    DCR: Conductor: 9.38 Ohms/100m.Nom
    D-C Resistance Unbalance: ≦5%
