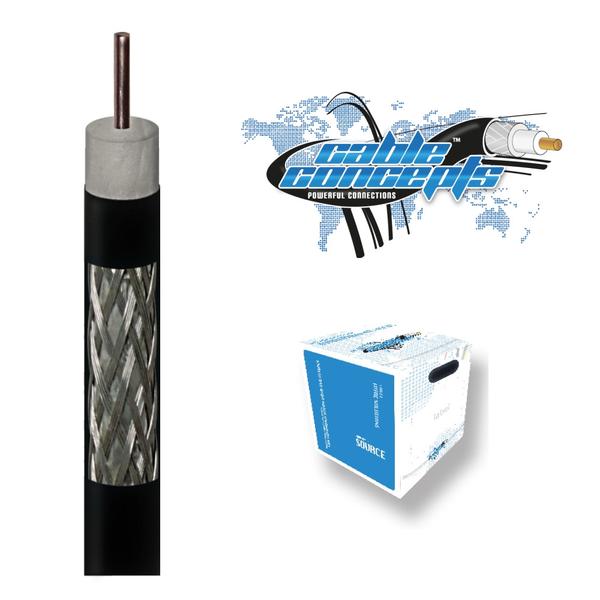

Cable Concepts single flooded RG-6 coaxial cable has an 18 gauge inner conductor surrounded by a tubular dielectric insulating layer.
An overlapping aluminum foil layer is bonded to the dielectric and then protected by an insulating outer sheath or jacket. This cable can be used both indoor and outdoor, is (FT4) fire rated. This cable is CSA approved.
Center conductor material: Copper-clad steel wire.
Dielectric material: Foam PE.
Jacket material: PVC.
Shield (braid) coverage: 60 %.
Shield (braid) material: Aluminum.
Cable length: 305 m / 1000 ft.
Cable weight: 32.00 lbs.
Diameter over center conductor: 0.0403 in per 1 strand.
Diameter over dielectric: 0.1800 in.
Diameter over jacket: 0.272 in.
Capacitance: 54 pF/m.
Characteristic impedance: 75 ohm.
Nominal velocity of propagation (NVP): 85 %.
Structural return loss: 15 dB at 10013000 MHz. 20 dB at 51000 MHz.
Structural return loss test method: 100% swept tested.
UL temperature rating: -20 °C to 75 °C.
Application: Satellite, CCTV, CATV.
Cable type: Series 6.
Jacket color: Black.
Product number: WICH2161.
Center conductor gauge: 18 AWG.
Frequency: 3000 MHz.
Center conductor type: Solid.
Sequential footage marking: Every two feet.
Packaging type: Box.
Maximum recommended pulling tension: 45 lbs.
Minimum bend radius (install): 3 in.
