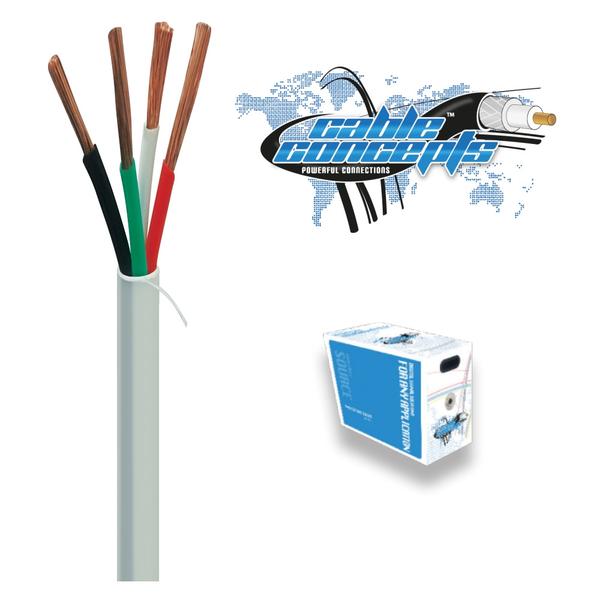

14 gauge (65 x 0.14mm) 4 strand bare copper conductor; PVC insulation, ripcord, PVC jacket.
Application: Commercial audio, Security systems, Power limited control, Sound & audio, Intercom/PA systems, Broadcast and Nurse call.
1) Physical Dimensions
Center Conductor:--------------65X0.14+0.01mm Strand Bare Copper
Insulation:-------------------------2.0+0.02mm PVC
Insulation Thickness:----------0.254mm
Ripcord:---------------------------Yes
Jacket:-----------------------------5.60+0.03mm PVC
Jacket Thickness:---------------0.38mm
2) Mechanical Specification
Operating Temperature Range:------------20 To +75
Cable Weight:----------------------------------43.25 Lbs/Mft
Min. Bend Radius:-----------------------------2.2 in.
3) Electrical Characteristics
Operating Voltage:--------------------300 VRMS
Max. Conductor DCR:---------------4.23/Mft
Capacitance:---------------------------33 pF/ft
